Shaving Horse (Hoanzlgoas)

Because I want to try to work with drawknifes I had the idea to build a Shaving horse.
I don't have much space, so I decided to integrate the front part of the shaving horse into an existing saw-bench.

So I made some plans and the following one survived:

3d-plan

 The first step

begin with 2 pieces of wood, nailed together

... drilled together ...

cut together - then making a sandwich

gluing

drilling the screw-holes ... not easy to hold the direction

ooops ... thats not OK ... 2 pieces of scrap-wood :-(

... now it's OK :-)

aaah ... using my bench rabbet plane (Stanley #10 "Carriage maker's rabbet plane") the first time

the top bridge of the hold-down



chiseling out

tuning with the rabbet plane

... and the pairing chisel

finished the male

making the female

sawing for the wedges ... along the grain

Because I think it's easier to mark and make the male out of the female the other side will be this way ...

fertig ... funktioniert :-)

und alles zerlegbar!

Knife Tray

Google Sketchup - Vorlage

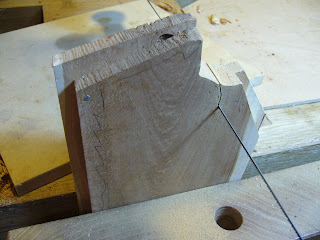

Kopfteile zusammennageln ... dann werden's auch gleich

Impressionen ...

grob mit der Bogensäge

mit dem Stechbeitel geht nur das gesunde Holz ...

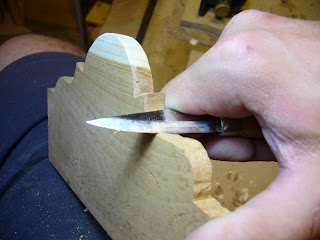

... das etwas modrige muss mit dem Schnitzmesser bearbeitet werden

man bemerke das freche Astloch ;-)

alle Teile noch ohne Zinken

z'ammleimen

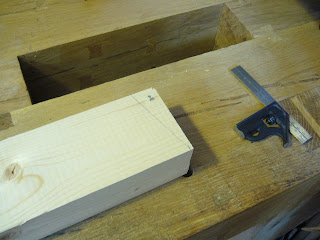

Bretter für den Boden

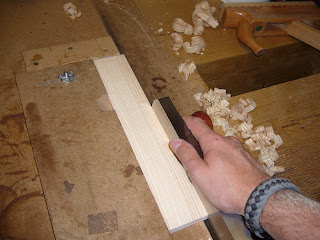

rechtwinkelig mit der Stoßlade

aufleimen des Bodens ... gut, dass meine Hobelbank Löcher hat :-)

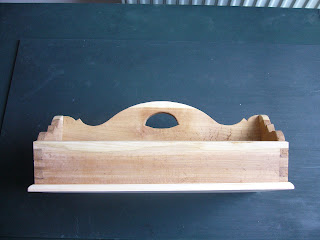

fertig ... noch ohne Oberflächenbehandlung

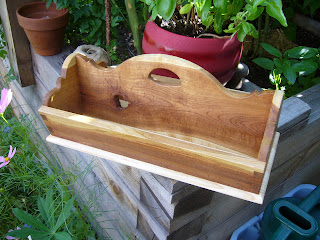

ge-Sanding-Sealed

die Vorlage aus dem 18. Jhd

aus dem Klassiker "Furniture Treasury"

FINISHED!!!

length: 83 cm
depth: 59 cm
height: 60 cm (72 cm with wheels)
Inside (l, d, h): 74 x 49 x 56 cm - over 200 litres volume!
3 drop-drawers lenghtswise (depth:17 cm, height: 12/8/4.5 cm)
Outside: milkpaint & linseed-oil

outside already with some signs of use

the monster opens it's mouth ;-)

Drawers - Doveteils & Nails

Frame-bottom ... planing for gluing

Glueing the bottom

I added a few wooden pins in the corners (look @ front corner) ... so the dovetails cannot open

2 of 3 drawers installed

finger-hole in the middle drawer (top-drawer doesn't need one)

all 3 drawers installed

full access to the drawers

bootom drawer-underside ... finger-pull strengthened with bamboo-barbecue-sticks
